Bradley E. Layton, Ph.D
Assistant Professor, Energy Technology Program Director, Drexel University
Abstract
Typically, the energy densities of solids or liquids such as coal and oil are measured in dimensions of energy per unit volume or energy per unit mass, whereas solar, wind, and hydroelectric sources are rated in dimensions of power per unit area. This article provides a unifying framework for comparing several prevalent energy sources on an energy-per-unit volume basis for the purpose of unifying conventional metrics. The energy density of oil is 35 to 45 gigajoules (10,000 kWh) per cubic meter*. When measured using the methods presented,solar energy has a density of 1.5 microjoules per cubic meter, over twenty quadrillion times less than oil. Human energy density is approximately 1000 J/m3, while other inexhaustibles such as wind and tidal have energy densities of 0.5 to 50 J/m3. This article provides an educational engineering mathematics framework for calculating energy densities of prevalent energy sources. The goal is to provide a new perspective on how to compare energy sources on a more fundamental basis. Finally, the article provides a method of estimating the dollars-per joule for natural resources versus human resources and concludes with commentary on how political decisions may be affected by energy densities and energy costs.Keywords: Energy density; Inexhaustible; Oil; Human power; Sustainability
INTRODUCTION
Dwindling oil supplies and concern over climate change caused by combustion-engine emissions have sparked a new debate over alternative energy investment. If citizens, political leaders, and policy makers are to be well informed, a basis of comparison in consistent units is needed.We provide a basis for measuring energy density on a joules-per-cubic-meter basis and then on a dollars-per-joule basis. From these two metrics, a volume of space or area of land and its associated space above and below may be valued on a dollars-per-cubic-meter basis. With this information, energy densities, and thus dollar values, may then be assigned to regions of the world based upon variables such as local wind speed, solar flux, as well as fossil fuel prospects.Energy as a state variable is typically categorized into chemical, electrical,mechanical,radiant, thermal, nuclear, or relativistic. Since multiple energy modes may occupy the same region of space, a volume that contains photons (i.e., light) and wind has both radiant energy and mechanical energy. If a volume of space contains combustible material, such as hydrocarbons (i.e., coal or oil), it contains chemical energy. Summing the energy densities within a given volume of space for each mode within the natural environment, an appropriate technology may be selected or developed to perform the extraction or procurement of that volume. The cost to develop or acquire a given technology may then be used to evaluate whether extraction is economically feasible based on an energy returned on energy invested (EROEI) basis. History has shown that early EROEI numbers for oil are typically quite high,but these numbers dwindle unless more efficient extraction technologies are developed(Ruppert 2003). Likewise, alternative energy sources such as wind and solar typically have very low or even negative EROEI ratios initially, because of the relatively low energy densities of these sources, but over the course of their lifespans surpass fossil fuel-based technologies because alternatives such aswind and solar technologies have only maintenance costs, but no extraction costs other than initial land acquisition.
Typically, energy resources are categorized as either renewables or non renewables.Traditional non renewables are oil, coal, natural gas, and uranium. Nature is still making these, but at a rate far slower than human consumption. Energy sources traditionally classified as renewable include solar, wind, ocean, and geothermal. In reality, these are inexhaustible. True renewables are biofuels such as wood, soy-derived biodiesel, and grain-derived ethanol (Hill et al. 2006). Inexhaustibles will be present for the next five billion years. Oil is likely to dwindle significantly in the next one to two hundred years.Indeed global “peak oil,” or the point at which we have exhausted half of the world’s oil supply, was predicted to occur in 2008 (ASPO August 2004; Attarian 2002). Peak oil occurred within the continental United States in 1970 to 1971, and in the Soviet Union in the mid 1980s (Clark 2005). Indeed, it has been suggested that “the United States rode a wave of liquid petroleum to win both world wars” (Yergin 1991).
The goals of the article are threefold: (1) to educate the readers inexperienced in evaluating energy densities with elementary formulae for doing so, (2) to suggest to experts a unifying method for measuring energy density values, and (3) to provide a framework for measuring human versus technological energy densities.
*One gigajoule equals one billion joules, and there are 3,600,000 joules in a kWh. A cubic meter is about half the volume of a kitchen refrigerator.
REVIEW OF PREVALENT ENERGY SOURCES
Solar Energy Density
Our sun delivers to the earth a constant supply of 1,300 to 1,400 watts of power per square meter (Berger 1978; The kaekara 1975). A watt of power is equivalent to one joule of energy per second. For example, it takes about 100 joules of energy to stand from a sitting position, and about 300,000 joules to boil a quart of water. One square meter has about the same area as ten square kitchen floor tiles. At the equator on a clear day, the equivalent of thirteen 100-watt bulbs shines on this patch of ten tiles. This is enough power to run all of the electrical appliances of an average American household. A typical American household’s electrical energy consumption could theoretically be met by a patch of only five kitchen–floor tile-sized solar panels. While this sounds promising, it is unfortunately only valid for a home at the equator with twenty-four hours of sunlight per day. At latitudes farther north and south, direct available solar power diminishes. At 40N or 40S, the amount of power per square meter on a sunny day at noon may be half of that of the equator (NREL1992). These latitudes represent a swath in the Northern Hemisphere through San Francisco, Philadelphia, Madrid, Rome, and Beijing, and in the southern hemisphere through Buenos Aires and Sydney. With its southern tip at 35S, all of Africa is north of 40S. The U.S.national average is closer to only 100–150 W/m2, or about 10% of the brightest days at the equator.
What is the power density of solar energy? How much solar power per cubic meter is there? The volume of the space between a one-meter-square patch on Earth and the center of our orbit around the sun is 50 billion cubic meters (the earth is 150 billion meters from the sun, or 4,000 earth circumferences). Dividing the usable 100 watts per square meter by this volume, yields two-billionths of a watt per cubic meter. Sunlight takes about eight minutes(499 seconds) to reach the earth. Multiplying 499 seconds by twenty-six billionths of a W/m3 reveals that solar radiation has an energy density of 1.5 microjoules per cubic meter (1.5· 10-6 J/m3). Indeed, the space between the earth’s surface and the sun is the most precious to any photosynthetic organism or solar technologist. Just as a phototrophic plant living in the shade quickly dies, someone who finds his solar panel in the shade quickly loses the money invested in its purchase.
Energy Density of Wind and Waves
Wind is driven by changes in weather patterns, which in turn are driven by thermal gradients. Tides are driven by fluctuations in gravity caused by lunar revolutions. The energy densities of wind and water systems are proportional to the mass, m, moving through them, and the square of the speed, v, of this mass, or ½mv2. At sea level, air with a density of about one kilogram per cubic meter moving at five meters per second(ten miles per hour) has a kinetic energy of 12.5 joules per cubic meter. Applying Betz’s Law, which limits efficiency to 59% (Betz 1926), yields about seven joules per cubic meter. Thus, wind energy on a moderately windy day is over a million times more energy-dense than solar energy. This number may sound misleading at first when comparing a residential wind turbine to a residential-sized solar panel in a sparsely populated region. However, consider the following problem. To supply energy to a densely populated area using only the footprint of the area, the maximum amount of solar energy available is fixed; however, the amount of wind energy may be expanded by stacking wind turbines as high as is mechanically feasible, thus justifying the energy per unit volume basis.
There are two prevalent mechanisms for extracting tidal energy. In one system,barrages move up and down, extracting energy with the rise and fall of the tides. On the second type strategy, tidal stream systems act more like underwater wind turbines,extracting energy from tidal waters as they move past. As with wind, the energy of a moving volume of water is also ½mv2. Tidal systems have the advantage over wind systems in that water is approximately one thousand times denser than air. Their disadvantage lies in generally low tidal velocities of only ten centimeters per second to one meter per second.Thus, a cubic meter of water, with a mass of about 1000 kg, yields an energy density of about five joules per cubic meter for slow water1 and five hundred joules per cubic meter for fast water2. These are also subject to Betz’s law and represent only peak values, so the average energy densities are closer to one-half of a joule per cubic meter to fifty joules per cubic meter, or about the same as wind.
1 kinetic energy (tidal low velocity) = ½ mv2 = ½ · 1000 kg · (0.1 m/s)2 = 5 joules.
2 kinetic energy (tidal high velocity) = ½ mv2 = ½ · 1000 kg · (1 m/s)2 = 500 joules.
Geothermal Energy
The onlyway to extract thermal energy from the atmosphere is to construct an insulated pipe between it and a reservoir at lower temperature (preferably a much lower one). This is how geothermal heat pumps work. Typical ground temperature is 52F (284 K). On a 90F day, such a system has a peak efficiency of 7%, and a power density of only 0.05 mW/m3 (Stopa and Wojnarowski 2006): typical surface power fluxes for geothermal wells are on the order of 50 mW/m2 and have typical depths of 1 km. To find the energy density, a characteristic time must be included. The time used should be that of the time required for water being pumped into the ground to circulate through the system once. This number is on the order of ten days (Sanjuan et al. 2006). The resulting energy density is 0.05 J/m3, or roughly two to three orders of magnitude lower than wind or waves.
Human and Animal Energy Density
Well-fed humans consume between 2,500 to 4,500 Calories per day (10–20 MJ per day). This represents a total metabolic power of 100 to 200 watts3. The volume of a human is about 0.1 m3. Approximating the work that a human can do as the equivalent of walking steadily at a rate of 2 m/s shows that a human has an energy density of 1,000 joules per cubic meter4, or about twenty to two thousand times greater than wind and water, and about a billion times greater than solar5 (Table 1).
Petroleum Energy Density
A single gallon of gasoline contains approximately forty megajoules of chemical energy. Dividing energy by volume yields an energy density of ten billion joules per cubic meter. Gasoline is ten quadrillion times more energy-dense than solar radiation, one billion times more energy-dense than wind and water power, and ten million times more energy-dense than human power.
3 The best endurance athletes can produce 400 to 600 watts for periods of minutes to hours.
4 Kinetic energy (human) = ½ mv2 = ½ · 50 kg · (2 m/s)2 = 100 joules.
5 This calculation is equivalent to determining the energy density of a slave or unskilled manual laborer.
PRACTICAL ENERGY DENSITY COMPARISONS
How does the energy density of petroleum change when it is added to a system that contains an automobile? The approximate volume of an average-sized car with (or without)people is approximately ten cubic meters. After adding the volume of the vehicle carrying ten gallons (0.04 cubic meters) of gasoline, the energy density of a gasoline-powered car is still forty megajoules per cubic meter. Putting more people into the car such as in carpooling means that a greater fraction of the fuel is being spent to move people rather than metal, but it has no effect on the energy density of the system even if the amount of work the occupants may be doing is considered (Layton et al. 2007). Thus, a car full of people is one thousand times less energy-dense than the raw fuel but is still forty thousand times more energy-dense than a human alone and over a trillion times more energy-dense than the sun’s radiation. Coal, by comparison, has an energy density 50–75% that of oil.
Nuclear Energy Density
The energy density of nuclear energy can range from very great 1.5 · 1015 J/m3, for purified uranium, to less than half a percent of this in the naturally occurring state. Theoretically, the energy density in a nuclear reaction is E = mc2. When U235 splits in a typical reactor, a very small mass is converted to radiant thermal energy. If all of the matter were being converted to energy, the energy density would be about 1021 joules per cubic meter, or over ten billion times more energy-dense than petroleum. The total global uranium available normalized by the volume of the earth would likely render its energy density comparable to geothermal.
Comparison of Energy Sources
Fundamentally, the rate of solar influx is the upper limit on our natural energy capture rate. Since cells may not be stacked, the best-case scenario of 100% capture of 1,300 watts per square meter yields a daily energy delivery of 14.3 · 1021 joules. We currently use 1.17 · 1021 joules technologically per year. Note that before the discovery of fire and the domestication of animals, the number was zero. An easy comparison is that we as a species use less energy in a year than hits the planet in an hour (Lewis and Nocera 2006). This is equivalent to about one percent of one percent of the total solar incident energy, or the equivalent of covering an area nearly the size of Texas with solar panels that are 10% efficient.
HUMAN ENERGY CONSUMPTION
Home Energy Consumption
An average person eats ten million joules of energy in food per day and consumes about 200 million “technological joules” of energy per day (Lewis and Nocera 2006). For a summary, see Table 2. The averages in some countries are currently above 1,000 MJ per person per day (Ang and Liu 2006). As an example, the average Malaysian consumed 265 MJ per day in 2000, while the average Pakistani consumed 56 MJ that year (Sari and Soytas 2007). By comparison, the average American was consuming over 650 MJ per day in 1950 (Marcotullio and Schulz 2007). The estimates of Haberl et al. (2006) (Haberl et al. 2006) are about 550 MJ per day for Europeans, and 1200 MJ per day for U.S. citizens. As has been the trend since the Industrial Revolution, this consumption rate is likely to continue to increase and is typically positively correlated with gross domestic product (GDP).
The author’s August 2007 energy bill indicates 517 kWh (kilowatt-hours) of electricalenergy consumed. This is an average energy consumption rate of about 720 watts or nearlyone horsepower (746 watts): literally the power that a single horse can provide. Theauthor’s monthly household natural gas consumption rate was between one thousand and twenty thousand cubic feet (300 cubic meters). A cubic meter of natural gas contains about 40 megajoules of energy. Thus the author’s family of four consumes energy at a rate of about 25 MJ per person per day at home. The household use of natural gas consumption was about 4,000 watts, approximately six times the rate of electrical energy consumption.How do we use this energy in our homes? On the inside of the door of most refrigerators is a label listing the amperes, or peak electrical current the compressor motor uses when starting. A typical refrigerator has a rating of 6.5 amps. Multiplying the number of amps by 110 volts results in about 750 watts (one horsepower) to run the refrigerator’s compressor at full power. If an average refrigerator runs three hours per day, it consumes energy at a rate of 90 watts, a rate slightly greater than 10% of the total household electrical energy consumption.
Using the example above, the cost of U.S. home energy is about 1.6 cents per megajoule for natural gas and about 5.0 cents per M3 for electricity. This is based on an August 2007 power bill of $116.87, where fifteen hundred cubic feet of natural gas were burned for a cost of $27.19 and 517 kWh of electricity was consumed at a cost of $89.68. Electricity is more expensive than natural gas because of control and transmission technologies.
Transportation Energy Consumption
A person living in a valley who drives her car up a hill then parks it has given the car an additional energy of mgh, where m is the vehicle’s mass, g is gravity, and h is the change in the vehicle’s change in elevation6. While the vehicle is moving, it has energy ½ mv2, where v is the velocity of the vehicle. When the driver returns to her home in the valley and parks the car in its original location, it has the same mechanical energy as it did before leaving: none. But during the trip, chemical energy stored in gasoline was consumed. Where is this energy now that the car is parked? All of it now exists as thermal energy: molecules of air that were moving slowly prior the vehicle’s passing are now moving faster and colliding with neighboring molecules, transferring the energy through microscopic collisions.
How may the trip be viewed on an EROEI basis? The driver has likely gained food or clothing resources during the trip. For example, if fifty pounds of food (25 kg) was purchased, this represents approximately 735 megajoules of energy (7,000 calories per gram · 25,000 grams · 4.2 joules per calorie) and likely the trip resulted in a positive EROEI. If, however, the traveler were to burn a gallon of gasoline (40 megajoules) and purchase less than six pounds of food, the EROEI is negative. Beyond this simple “fuel for food” analysis, what the driver has to show for the journey is a thermal signature left on the atmosphere. As the car sits in the driveway, its engine and brakes are radiating energy into the atmosphere at a very low wavelength that cannot practically be captured for performing additional work. What has occurred is that one energy source (food) has been moved from one location to a location nearer to the consumer (i.e., the refrigerator) at the expense of burning another energy source (gasoline). In the end, both the burning of the gasoline and the burning of the food will result merely in the acceleration of global heat generation: all of the E = 425 · 1018 joules we consume per year heats the earth’s crust, oceans, and atmosphere. A simplistic calculation on warming of the atmosphere, T, neglecting heat radiated into space, absorbed by the earth, and neglecting greenhouse gas interactions that has a mass of ma = 5.15 · 1018 kg and a specific heat capacity, cp = 1 J(g-1K-1 yields about a 0.1 K increase per year (ΔT = E/cpma).
Some of the most fuel-efficient diesel engines for automobiles get sixty to eighty mpg.A gallon of liquid petroleum such as diesel or gasoline contains about forty megajoules of energy. Driving at fifty mph in a car at twenty mpg consumes power at a rate of about 30,000 watts (about forty horsepower). Thus, an automobile consumes energy at a rate approximately ten to one hundred times that of a house. For a summary of power consumption see Table 3. First mention If we ran our cars incessantly, like we do our houses, this would be expensive indeed! To simply idle an engine between 500 to 1,000 rpms, an automobile requires between one and five horsepower (750 to 3,500 watts), or the power of six to thirty exercising people just to overcome engine friction (Figure 1). Since solar technology is only about 10%to 20% efficient, the effective power per square meter is perhaps only 10–20W/m2.

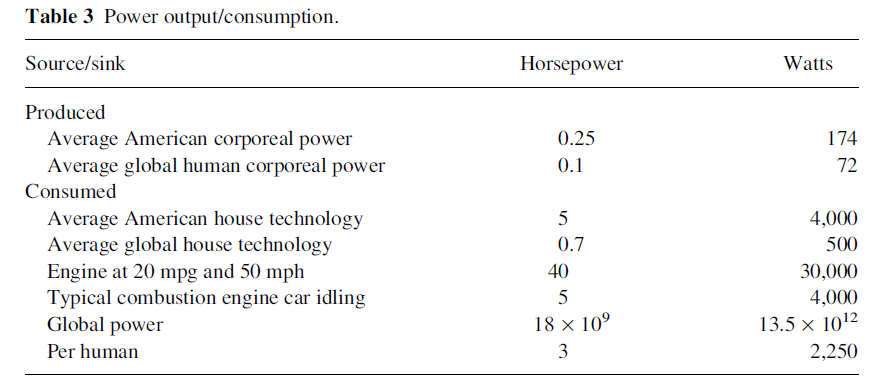

Typical combustion engine car idling 5 4,000 Global power 18 · 109 13.5 · 1012 Per human 3 2,250 Thus, it takes the equivalent of forty to three hundred square meters (400 to 3000 square feet),or the footprint of a house, to keep a typical car idling.
At velocities around 50 mph (80 km/h), the power equivalent of about one hundred people is required to move an automobile. Consider, however, that the unaided land speed record for a human on a bicycle is 81 mph (130.36 km/h), achieved in 2002 by Canadian rider Sam Whittingham on a fully-fared, highly aerodynamic recumbent bicycle. It is likely that this rider was producing between 600 and 700 watts during the effort. The greatest distance ridden in 24 hours is around 650 miles (1046.1 km) by Greg Kolodziejzyk at an average speed of 27 mph (43 km/h). However, the rider’s power generation rate was only a fraction of a horsepower, likely around 200 to 250 watts.Average people can generate approximately 100 watts continuously. The two primary reasons that these riders were able to go so fast and so far are because (1) the mass of their vehicles is only about 25 kg (50 pounds) and (2) the drag coefficients have been minimized by shaping the bicycles to slip through the air easily. By contrast, an American car or truck may weigh 2,000 to 4,500 kg (4,000 to 9,000 pounds) and a vehicle’s aerodynamics are unfortunately, from an engineering efficiency perspective, typically only considered after aesthetics.
Every second an automobile sits idling, the engine is typically running at approximately 1,000 rpms. This means that the pistons in the car’s engine go up and down about fifteen times each second. During each one of these seconds, fuel is injected into the cylinder at a mass fraction sufficient to keep the crankshaft and camshaft turning. This maintains the momentum of the drive shafts such that it can continue to overcome its internal friction. It is burning gasoline at a rate of between 0.1 cubic centimeters per second and 0.5 cubic centimeters per second. An engine idling at five horsepower burns an ounce (30 grams)of fuel every three minutes. Not only is this wasteful of precious energy, but carbon monoxide emissions are typically higher for an idling engine than those of a running engine (Tsunogaia et al. 2003). Indeed, some U.S. cities such as Washington DC have passed laws making it illegal to idle an engine for more than three minutes (DCMR 2007).
6 In the expression mgh, the multiplication symbols have been omitted: mgh = m · g · h.
Cost of Food in Dollars per Joule
At the grocery store, food that costs one dollar per pound is typically considered a bargain. A pound of pasta has approximately 1680 Calories of energy (7 megajoules). Food that is high in fat has an energy density approximately equal to oil, but the price of food on aper-mass basis is ten to one hundred times that of oil (Table 4). The energy densities of meats (proteins) and grains (carbohydrates) are slightly less than half of that of high-fat food. For meat, however, the cost per calorie is considerably greater, partially because of the inefficiency of an animal’s energy conversion and partially because of greater demand,since meat is such a protein-rich source of food. For example, the energy of pasta is only about $0.14 per megajoule and steak is about $1.30 per megajoule. The price of food will likely increase as arable land is being hastily and shortsightedly converted into ethanol and biodiesel farms. This cost increase has already been felt in Mexico, where the price of tortillas has nearly tripled in one year. Indeed the price per kilogram rose from 63 cents in 2006 to between $1.36 and $1.81 in January 2007 (Roig-Franzia 2007).
Cost of Natural Energy in Dollars per Joule
By comparison, the cost of solar (Rehman et al. 2007), wind, tidal, and geothermal are all in the neighborhood of $0.10 per MJ. Since the predicted peak of oil may have occurred in mid 2008, it is unlikely that price of oil will ever fall substantially. On the other hand, the cost of energy from inexhaustibles should come down as effective, efficient technologies are developed. In the meantime, there is a tremendous growing market for the development of chemical and electrical energy storage devices (Carrasco et al. 2006). For a comparison of energy costs among prevalent sources, see Table 4.
A recent review (Tonn and Peretz 2007) summarizing the U.S. Energy Information Administration (EIA) reports states that kWh costs for electricity may increase from 1.7 cents per kWh (0.5 cents per MJ) in 1970 (2003 dollars) to 12.5 cents per kWh (3.5 cents per kWh)in 2025. Natural gas costs may increase from $1.55 per one hundred cubic feet (1.4 cents per megajoule) in 1995 (2003 dollars) to $8.23 per one hundred cubic feet (7.3 cents per megajoule) in 2025.
The cost of wind power is scheduled to drop dramatically from nearly $0.25 per MJ ton early one cent per MJ in the next decade (Pan and Kohler 2007) as production of turbines and adoption of the technology becomes more prevalent.Geothermal energy has an estimated production cost of less than one cent per MJ(United States Department of Energy 2008), to approximately three cents per MJ (Schneideret al. 2007).
Human Energy Potential
Unfortunately, most people are not conversant in the jargon of energy and power. The following is intended to allow the reader to build a better conceptualization of what energy and power are through the use of simple numerical examples. One watt is the amount of power required to perform one joule of work (to spend one joule of energy) in one second. One joule of energy is equivalent to pushing something with one newton of force (1/5th of a pound) through a distance of one meter (three feet).How many watts can a human generate? Lifting a twenty-pound bag of groceries into a car through a distance of one meter in one second uses 100 joules of energy (1/40th of a Calorie)7. On the other hand, an Olympic weightlifter clean and-jerking a 250 kg bar to a height of two meters in two seconds does five kilojoules (over one Calorie) of work. This is equivalent to 2500 watts, or over three horsepower.
Lifting the bag took 100 joules of work. In other words, 100 joules of energy was spent. This energy was produced from muscle, which derives its energy from the chemical energy of food. Food energy content is measured in Calories (kilocalories). One calorie is approximately four joules. So 25 calories are “burned” in lifting the bag. There are 1000 calories (small c) in a Calorie (big C). So lifting the bag took 0.025 Calories or one ten-thousandth of the USDA daily recommended intake of 2,500 Calories. It also takes energy simply to raise an arm during lifting, to maintain body posture, and to control the eyes and head during the motion. A daily chemical consumption of approximately 2,500 Calories is the equivalent of 10 megajoules each day. Athletes or people who perform heavy lifting or operate heavy machinery require a greater amount of energy: 20 to 40 MJ of daily energy to maintain their activities.
Energy Lost During Conversion
Why can’t all the thermal energy being pumped into the atmosphere to run our motors be converted back into usable mechanical or electrical energy? A concept that is unknown by most people and largely misunderstood by most engineers is that an internal combustion engine (gasoline engine) is a heat engine. The only way for a gasoline or diesel engine to run is not by simply converting octane and oxygen (C8H18 and O2) into carbon dioxide and water (CO2 and H2O). It is the heat of expansion that performs work. When materials combust in the presence of oxygen, they expand and become hotter. The combination of heating and expansion keep pistons and gears spinning. The hotter an internal combustion7 engine becomes, the more efficient it is via: = (Thot – Tcool)/Thot. Our atmosphere is on
average 16C (60F, 300 Kelvin). An engine running at 600 K (326C, or 620F) has a theoretical maximum efficiency of (600 – 300)/600 = 0.5.
7 Twenty pounds is about ten kilograms, and a kilogram weighs about ten newtons. The bag thus weighs
one hundred newtons. Lifting the bag into the car in one second requires 100 watts as seen in the following
equation.
100 newtons · 1 meter 1 second ¼ 100 watts:
True Costs

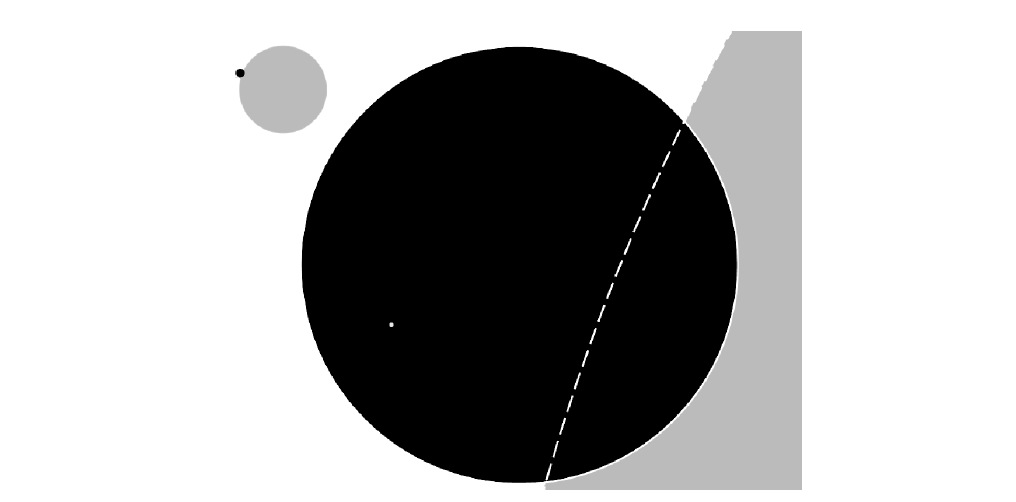

It is difficult to conceptualize the quadrillionth ratio between solar energy and cpetroleum density. A quadrillionth is a millionth of a billionth (Figure 2). Based upon the current technological, economic, and political climate, the sun, the wind, the moon (tidal),the earth (geothermal), and all of the world’s people cannot compete with “black gold” on the basis of energy density.
If we assume the average annual cost of living to be about $100,000 and life expectancy to be fifty to eighty years, people have a dollar value of about five million to eight million dollars. A review of recent lawsuits and life insurance policies bears this out. The home energy usage example above demonstrated that natural gas costs about one cent per megajoulecand electricity costs about five cents per megajoule. A human consumes approximately 365 gigajoules of energy in fifty years. Thus, human energy is worth about $1.37 per megajoule. From this simplistic calculation, humans are about one hundred times more valuable than fossil fuels. During the writing and revision of this article, oil has risen from $80 per barrel to over $140 per barrel, and is now hovering near $100 per barrel. This volumecof oil contains 1.7 Mwh (6.1 gigajoules). Thus it costs about 1.5¢ to 2.5¢ per megajoule.
CONCLUSIONS AND RECOMMENDATIONS
It is the responsibility of scientists and engineers to effectively communicate their findings with the general public. It is the public’s responsibility to make informed, ethical Figure 2 Graphical illustration of one-millionth. The tiny blue dot has an area one ten-thousandth of that of the black circle. This black circle has an area one-hundredth of that of the gray circle, which is too large to fit on the page. Thus, the blue dot is a millionth the area of the gray circle. A wide view is shown in the upper left of the figure. The dot represents the energy density of a human, and the large gray circle represents the energy density of oil. The energy density of solar radiation is one one-billionth the area of the dot.voting decisions regarding who becomes responsible for establishing national energy policy.It is the responsibility of science and engineering educators to give their students the tools necessary to quickly calculate and evaluate the most salient parameters that affect humanity and the balance of nature. Additionally, science and engineering educators must impress upon their students a sense of the ethical implications of their decisions to develop one technology in favor of another. It is the hope of the author that this article has enhanced the mathematical literacy of those who have taken the time to read it.
What can we do to kick the oil habit? Can we teach our engineering students to build more efficient cars? Can we defray war debt with gasoline cost? Can we invest more in developing effective solar technologies (Abulfotuh 2007; Demirbas 2007)? Can we invest more in energy storage technologies? Can we carpool more? Can we ride our bicycles more? Can we keep our most energetically expensive resources such as aluminum, steel, glass, and plastic out of landfills? Can we create solutions that enable people to safely exercise while they work in an atmosphere that is not clouded by particulates (Reddy andBoucher 2007), carbon monoxide, ozone, nitrous oxides, and sulfur oxides emitted from combustion engines (Wiedmann et al. 2007)? Yes, we can do all of these things. Now that some of the political, economic, and environmental costs of going to war for oil are becoming apparent, we can begin to invest in energy resources and habits that will keep our unique species alive, healthy, prosperous, and peaceful.
The acceleration of the rate of global per-capita energy consumption seems inevitable.The only human force that can reverse this trend is the use of the energy fromfood consumed and the application of the knowledge gained through education to alter the environment in away that will result in a entropy mitigation (Layton 2008). A primary example is planting a CO2-absorbing plant or tree. Another example would be the development of a technology designed to reduce greenhouse gas emissions while still maintaining human and ecosystem health. And while these “environmentally friendly” actions may seem well-intentioned, it has been recently noted by Lomborg (2007) in his book (Lomborg, 2007) Cool It that many such behavioral and policy changes suggested by the Kyoto treaty may be misguided. Lomborg contends that many of the detrimental effects of global warming may be mitigated by changes in social and political policies such as limiting development in ecologically fragile locations, creating incentives for reducing birth rates, and approving civil engineering projects that do not disrupt natural floodplains.
In Thomas Friedman’s “A New Mission for America,” he states that
If Bush made energy independence his moon shot, he would dry up revenue for terrorism; force Iran, Russia, Venezuela, and Saudi Arabia to take the path of reform. . . strengthen the dollar; and improve his own standing in Europe, by doing something huge to reduce global warming. He would also create a magnet to inspire young people to contribute to the war on terrorism and America’s future by becoming scientists, engineers and mathematicians (Friedman, 2004).
A similar sentiment is shared by Richard Ballantine, editor of Human Power. In his Spring 2003 editorial he writes:
The war in Iraq is about black gold—the last significant reserves of oil. Once Iraq is conquered, the coalition forces intend to take the oil to pay for the costs of the war, establishing a new regime, and rebuilding the country. The oil will go to developed countries and be used to fuel motor vehicles.
The primary argument of this article is that careful thought, education, and arithmetic can elucidate some of the most pressing economic and ethical polemics of our time. This was recently exemplified in a discourse in The Mother Earth News. In the August/ September 2007 issue, James Kliesch encourages truck owners to consider the responsibility of American citizens to become less energy dependent by purchasing vehicles that get better gas mileage. He states that a truck owner who decides to purchase a vehicle with 14 mpg rather than 16 mpg will save as much fuel as a car owner who drives a car with 51 mpg rather than 35 mpg. A reader from Denver, Colorado, responded, stating that Mr. Kliesch must have “dozed off in math class” because according to his calculations, the car owner would save eight times more fuel than the truck owner: [(51 – 35) 7(16 – 14) = 8)]. Indeed, the reader was wrong and should have been paying more attention in his math class. What the Denver reader did not do was to calculate the annual fuel consumption for both vehicles individually.
For the car, the equation is (15,000 ( 51) – (15,0007 35) = 134.
For the truck, (15,000 (16) – (15,0007 14) = 134.
What now are the responsibilities of the world’s leading scientists, engineers, and political advisors? It is our responsibility to construct a model of sustainable energy and natural resource consumption that does not continue to negatively impact the world’s fragile ecosystem. William C. Clark suggests that any worthwhile model will include an EROEI (energy return on energy invested) term8. He goes on to recommend that anyone who builds a viable model for “ecological economics” deserves a nomination for the Nobel Peace Prize.
Approximately half of trips by automobile are of a distance of five miles or less, a distance easily covered by most people on a bicycle in average weather conditions (Wilson,2004). It is the author’s contention that nearly any trip may be made by bicycle. Enclosed transportation where the occupant is not responsible for producing any of the power of locomotion is not new. Human-carried carriages date back for centuries but were only available to the ruling elite. Most Americans can now afford an automobile, effectively raising our energy consumption luxury above that of a typical African tribal leader. We have paid for this luxury with obesity, heart disease, traffic fatalities, wasted time in traffic, and the burden of insurance payments. How do we avoid the perils of a gasoline and oil-based economy? In the author’s opinion, it is our challenge to pass along memetically (through behavior, speech,and writing), the message that we as a species cannot afford to continue to exploit the natural resources of our planet in the manner and at the present rate without dire and immediate consequences. Each time we pass along our genetics to our children we are essentially creatinga new 200 MJ + per day demand for energy that simply cannot be sustained.
One solution is to spread your memes rather than your genes (Dawkins 1989). By spending time enhancing your own education level and by practicing self-replacement rather than self-proliferation, the problems associated with young, under educated populations may be avoided (Ness 2000). We have become the biggest threat to our own survival (Liu et al. 2003) and our intelligence necessitates that we accelerate the pace of educating ourselves. Sadly, much of the time of many of the earth’s most intelligent people spend their time thinking of effective weaponry. A lot of other very intelligent people also spend their time trying to subdue the intelligence of others through false advertising. A well-educated, well-informed population is the only antidote for the sloppy arrogance that8 What is “energy return on energy invested?” Simply put, it means how many gallons of oil must be burned to extract one gallon of oil. If one gallon must be burned to extract one gallon, the EROEI ratio is 1:1, and there is obviously no point to burning a gallon of fuel, only to regain it. At the height of American and Saudi oil production this ratio may have been as great as 200:1. Only one barrel of oil was burned to extract 200 barrels. we have allowed our current government administrators to fall into. Indeed, it is the opinion of many leading political scholars that the U.S. government of the past eight years has maintained its power through the use of deceit and scare tactics such as false allegations of weapons of mass destruction WMDs in Iraq. Rather than spending our national blood and national treasure on weaponry and political policies to bomb the people of the Middle East back another five hundred years, we should spend our intelligence on things such as effective medicines (Bland 2007) or space-exploration technology (Lin 2006).
In the author’s opinion, other emerging energy technologies that warrant funding include super capacitors (Chmiola et al. 2006), battery technology (Liu et al. 2002), and nano biosolar (Trammell et al. 2006). Other recent efforts to reduce the excessive emissions during cold starts must also be considered (Ashford andMatthews 2006).We should support work done to increase the efficiency of gasoline-electric hybrids (Wang et al. 2007). We should support work to reduce automobile emissions of polycyclic aromatic hydrocarbons(Mi et al. 1996), a known carcinogen (Alguacil et al. 2003; Bieler et al. 2005; Elci et al. 2003).)
Funding research that makes vehicles more energy efficient makes sense from an engineering perspective as well as a health perspective. Exposure to emissions from gasoline, but more acutely diesel exhaust, can lead to greater rates of cancer ( Jo and Song 2001; Parent et al. 2007; Weisel et al. 1992). A recent study showed that residents of Hamilton, Canada, would be willing to purchase alternative fuel vehicles if there were economic incentives such as tax relief and a reduced cost of the vehicle (Potoglou and Kanaroglou 2007). The study also indicated that people would purchase an alternative fuel vehicle if they knew that their emissions contributing to climate change would be reduced. There are a multitude of other things that we may do to reduce our dependence on foreign oil. Simple examples include limiting the amount of trash we put by the curb by composting, reusing, and recycling. Using gasoline-powered trash trucks to pile unwanted waste at remote locations accelerates the problems of CO2 emissions.
It is also the author’s opinion that we should indeed maintain security of the world’s energy-dense resources for fueling scientific endeavors such as space exploration. While hydrocarbons are not typically used directly as fuel for spacecraft, the purification of molecular hydrogen and molecular oxygen are very energy-intensive and thus typically rely on the combustion of fossil fuels. Instead of spending energy on space exploration, we are wasting the world’s petroleum reserves standing still in traffic jams in luxury cars. Elementary engineering mathematics demonstrates that the energy density of oil exceeds the energy density of all other available sources to such a great extent that oil may no longer be considered a commodity but a dwindling global natural energy resource currently being fought over (Clark 2005). In fact, it has been argued by leading scholar sand stated publicly by national leaders as Ohio U.S. Congressman Dennis Kucinich that “Everyone knows that the Iraq War is about oil” (Debate 2007). In fact, securing and protecting Iraq’s oil fields is one of the primary roles of the U.S. military.
By evaluating the energy density of liquid petroleum on a joules per volume basis and a dollars per joule basis, it may become apparent that military costs of protecting energy resources, while ethically questionable, may be economically justifiable by political leaders with agendas that include keeping oil prices low and maintaining a global military presence. These figures suggest a semi quantitative basis for explaining the willingness citizens of the Confederate States to fight and die for maintenance of control over this very energy-dense resource of unpaid, semiskilled labor! While domesticated animals have energy densities comparable to that of humans, their limited dexterity makes them less valuable.
PRACTICAL ENERGY DENSITY COMPARISONS
The figures presented in this article may help to partially explain the recent U.S. national energy policy that appears to favor military control of energy sources over domestic investment in developing infrastructure to promote alternative energy sources. The United States has plenty of coal to run its refrigerators, air conditioners, hair dryers,and toasters at a rate of up to five to ten cents per megajoule. The United States does not, however, have enough oil to run its semi tractor trailers, motor boats, lawn mowers, leaf blowers, jet skis, and SUVs. As humans, running at $1.37 per megajoule, we must educate ourselves as to the additional costs of extracting and protecting natural energy resources so that they are not wasted and so that human life is not spent in procuring and protecting them. For further discussion of the urban implications of peak oil, read Newman (2007).For a discussion of the effects of human population on energy consumption, read Sato(2007).
A forthcoming article will further investigate the recently introduced notion that the primary purpose of energy consumption is to reduce our entropy and to reduce the entropy of our immediate surroundings and technological prosthetics (Layton 2008). In essence, we use our intelligence and proclivity for violence as a species to gain access to energy sources at the expense of other societies and at the expense of all species that compete with us for resources. It is the need to “deentropize” ourselves and our surroundings that drives our need for energy (Nielsen 2007). This deentropization of our bodies and technological prostheses in turn accelerates the entropization of the environment. This can be no clearer than when we observe the human-enabled disasters of Hurricane Katrina, the Twin Towers collapse, the Dust Bowl of the 1930s, and the devastation wrought upon Middle East citizens by the U.S. military practices.
8 What is ‘‘energy return on energy invested?’’ Simply put, it means how many gallons of oil must be
burned to extract one gallon of oil. If one gallon must be burned to extract one gallon, the EROEI ratio is 1:1, and
there is obviously no point to burning a gallon of fuel, only to regain it. At the height of American and Saudi oil
production this ratio may have been as great as 200:1. Only one barrel of oil was burned to extract 200 barrels
ACKNOWLEDGMENTS
This work was funded in part by “A Green Alternative to Municipal Maintenance and Transportation, “Grant #C000021433” through the Pennsylvania Department of Community and Economic Development with help from Pennsylvania State Representative James Roebuck. The author also thanks John Tetz, Richard Sadler, and David Gordon Wilson for valuable discussions on ethics and efficiency.
